FLOOR MOUNTED 51.2V 314AH SE-FL-16K

INQUIRY

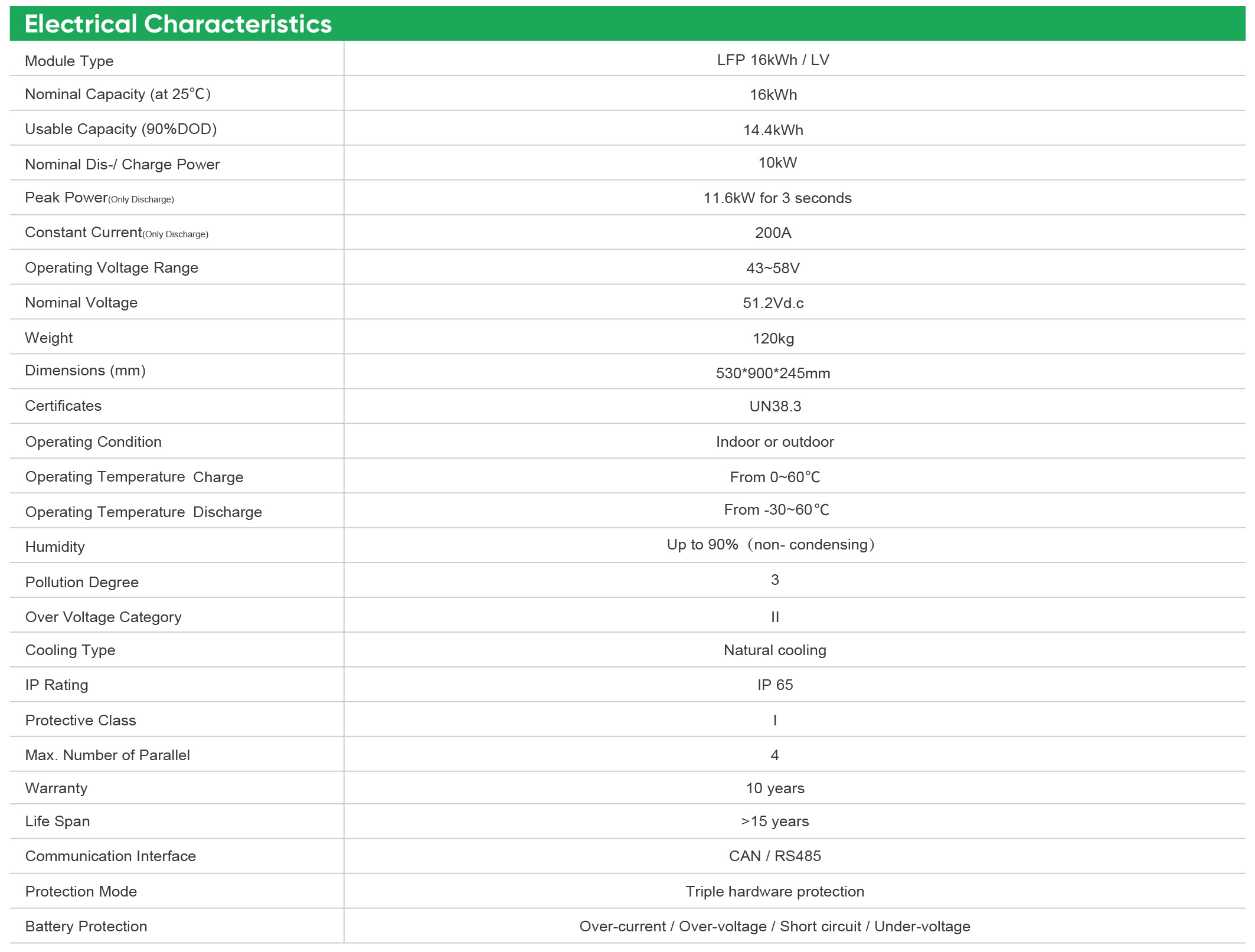

DETAILED SPECIFICATION

Model	SE-FL-16K
Voltage	48/51.2V
Capacity	314Ah
Battery Cell	3.2V 314Ah Prismatic Battery Cell
Configuration	16S 1P
Parallel Capacity	Yes, 16 units maximum
Max. Charge Current	157A
Max. Discharge Current	200A
Discharge Cut-off Protect Voltage	44.8V
Charge Cut-off Protect Voltage	57.6V
Cycle life	8000 Cycles @80% DoD
Communicate Port	CAN, RS485, RS232
L×W×H(mm)	530×900×245mm
Weight(KG)	120Kg
Discharge Temperature(℃)	-20~50℃
Charge Temperature(℃)	0~55℃
Lithium Battery Standard	IEC32619/CE/UN38.3/IEC61000 /ROHS/MSDS

COMPATIBLE INVERTERS
