SUNESS Utility-Scale Energy Storage System (ESS): Next-Generation Grid Stabilization & High-Capacity Renewable Integration

Introduction: Transforming the Modern Electrical Grid

The global transition toward renewable energy introduces massive volatility to modern electrical grids. As gigawatt-scale solar PV and wind power assets replace traditional synchronous generators, grid operators face severe challenges, including declining system inertia, phase angle instability, and severe power curtailment.

The SUNESS Utility-Scale Energy Storage System (ESS) is a utility-grade, high-capacity Battery Energy Storage System (BESS) designed to solve these systemic challenges. Engineering a bridge between variable clean energy generation and dynamic grid demand, the SUNESS solution enables seamless dispatch, precision control, and large-scale buffering of renewable resources. It serves as a critical infrastructure asset for public utilities, Independent Power Producers (IPPs), and transmission system operators (TSOs) worldwide.

Grid-Scale Energy Management & Ancillary Services Market Revenue

The SUNESS Utility-Scale BESS is engineered to participate directly in complex power system regulation, unlocking multiple revenue streams through high-performance grid ancillary services.

1. Active Primary & Secondary Frequency Regulation

Grid frequency fluctuations threaten the structural integrity of power systems. SUNESS delivers an ultra-fast sub-second full-power response time (less than 200ms). This rapid reaction capability allows it to excel in Primary Frequency Regulation (FFR/PFR) and Automatic Generation Control (AGC), injecting or absorbing active power instantly to arrest frequency excursions and maintain the grid at its nominal frequency (50Hz or 60Hz).

2. Dynamically Controlled Voltage Support and Var Compensation

Voltage instability often leads to localized grid failures. Equipped with high-performance smart inverters, the SUNESS system provides dynamic reactive power (VAr) compensation in both inductive and capacitive quadrants. By modulating reactive power injection in real-time, it maintains regional voltage stability, optimizes power factor, and improves transmission line utilization.

3. Utility-Level Peak Shaving & Capacity Firming

As multi-megawatt generation fluctuates, SUNESS performs large-scale capacity firming. It mitigates the famous renewable "duck curve" by absorbing excess midday solar or overnight wind generation and injecting it back into the high-voltage transmission grid during peak demand hours, eliminating the need for expensive, carbon-heavy fossil-fuel peaking plants.

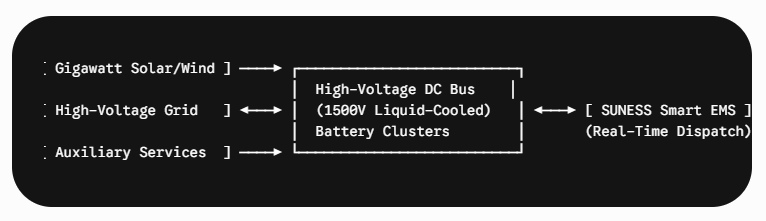

System Architecture: Multi-Megawatt Containment & Advanced Controls

SUNESS provides modularized, containerized energy storage solutions designed for heavy-duty, long-duration energy storage (LDES) applications.

1500V High-Voltage Liquid-Cooled Architecture

Transitioning from traditional 1000V architectures, the SUNESS utility solution standardizes on a 1500V DC liquid-cooled platform. Increasing the system voltage reduces balancing currents, curtails auxiliary power consumption, and minimizes overall system footprint.

Energy Density: Up to 5.0 MWh+ packed into a standard 20-foot ISO container.

Round-Trip Efficiency (RTE): Exceeds 92% at the system level, achieved via optimized cell-to-pack (CTP) integration and liquid-cooling cooling plates that maintain cell-to-cell temperature differentials

at △T less than 2°C.

Grid-Forming vs. Grid-Following Smart Inverters (PCS)

To support weak grids and remote transmission nodes, SUNESS integrates next-generation Grid-Forming Inverters. Unlike traditional grid-following systems that require an existing voltage vector to operate, our grid-forming technology behaves as a virtual synchronous machine (VSM), establishing an independent voltage and frequency source. This provides immediate short-circuit capacity and autonomous synthetic inertia to weak grids.

Emergency Power Restoration & Microgrid Black Start Capability

Grid resilience is defined by how a system responds to catastrophic failure. SUNESS acts as the ultimate insurance policy for regional utility networks.

Automated Black Start Restoration

In a total blackout scenario, restarting conventional thermal or gas power plants requires external power to drive heavy auxiliary pumps and fans. The SUNESS Utility ESS possesses advanced Black Start Capability. It can energize local substations and step-up transformers independently, providing the precise voltage reference and initial cranking power required to bring large-scale hydro, thermal, or gas turbines back online safely and efficiently.

Mitigation of Variable Generation Shocks

Wind ramp events and sudden cloud cover can cause gigawatt-level power drops within minutes. The SUNESS intelligent Power Plant Controller (PPC) and Energy Management System (EMS) track meteorological data and generation profiles simultaneously. The BESS smooths out these steep power gradients, filtering variable generation shocks before they impact the bulk transmission network.

Comprehensive Turnkey Deployment & Lifespan Maximization

Deploying a multi-megawatt utility asset requires deep engineering expertise and meticulous project lifecycle management.

By aligning utility assets with market dynamics and delivering ultra-reliable grid stabilization, the SUNESS Utility-Scale Energy Storage Solution optimizes real-time energy flow, safeguards electrical infrastructure, and maximizes the economic and environmental yields of global clean energy investment.
