HOME > PRODUCTS > Energy Storage Battery > High Voltage Lithium Battery > Rack-Type 51.2V 120AH 307.2-768Vdc With 1C 120A

RACK TYPE 120AH 1C CHAGRE & DISCHARGE SE-RH120-55/92K

LiFePO4 Energy Storage Battery (Application scenarios within 1C)

INQUIRY

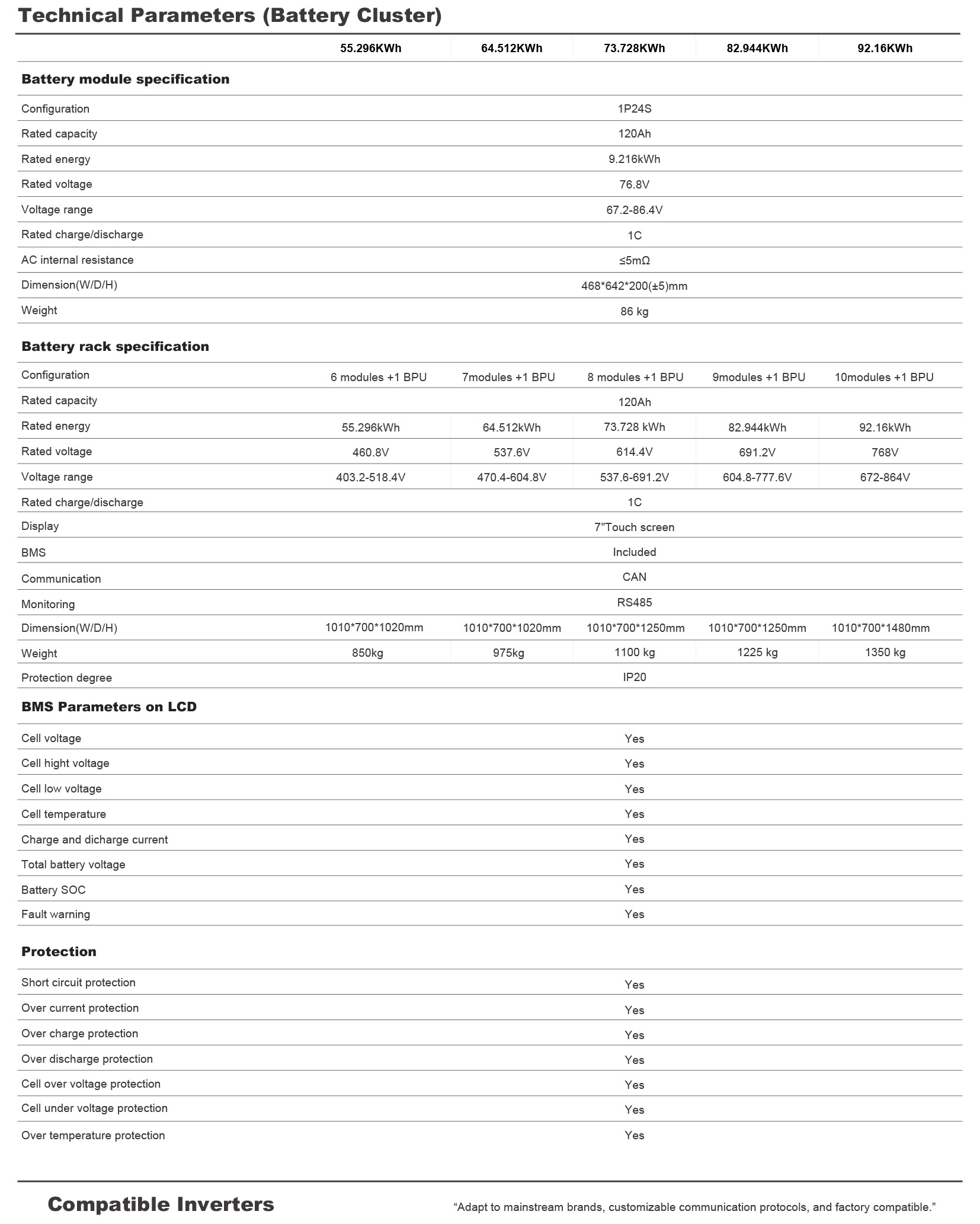

DETAILED SPECIFICATION

Product Description
Product Type	SE-RH120-55K	SE-RH120-65K	SE-RH120-74K	SE-RH120-83K	SE-RH120-92K
Number of Modules	6	7	8	9	10
Battery Capacity	120Ah	120Ah	120Ah	120Ah	120Ah
Battery Energy	55.30KWh	64.51KWh	73.73KWh	83.00KWh	92.16KWh
Size(L×W×H) mm	1010×700×1020	1010×700×1020	1010×700×1250	1010×700×1250	1010×700×1480
Weight	850Kg	975Kg	1100Kg	1225Kg	1350Kg
Standard Charge Current	120A	120A	120A	120A	120A
Standard Discharge Current	120A	120A	120A	120A	120A
Features
Battery Type	LFP
Cycle Life	≥ 8000 times @ 80% DOD, 25 °C
Nominal Voltage	460.8V	537.6V	614.4V	691.2V	768V
Operating Voltage Range	403.2-864V
IP Protection	IP 21
lnstallation	Cabinet Holding
Charging Temperature	0~60℃
Discharge Temperature	-10~60℃
Conventional
BMS Monitoring Parameters	SOC, System voltage,current, cell voltage, cell temperature, PCBA temperature measurement
Communication Port	RS485/RS232/CAN
Waranty	10 Years
