SE500KW-1044KWH BESS CONTAINER ALL IN ONE

The SPE-E1OFT1O44LP-2 is a highly integrated, standard 10-ft containerized energy storage system designed for commercial and industrial applications, with a rated AC output voltage of 4Oov.The system integrates STS system,providing strong off-grid load capability and supporting seamless on/off-grid switching within 2Oms. it is equipped with dedicated interfaces for diesel generator connection and PV inverter connection, enabling multiple power sourc-es to supply the system. This fexible design allows the system to adapt to various application scenarios and diverseuser requirements.

INQUIRY

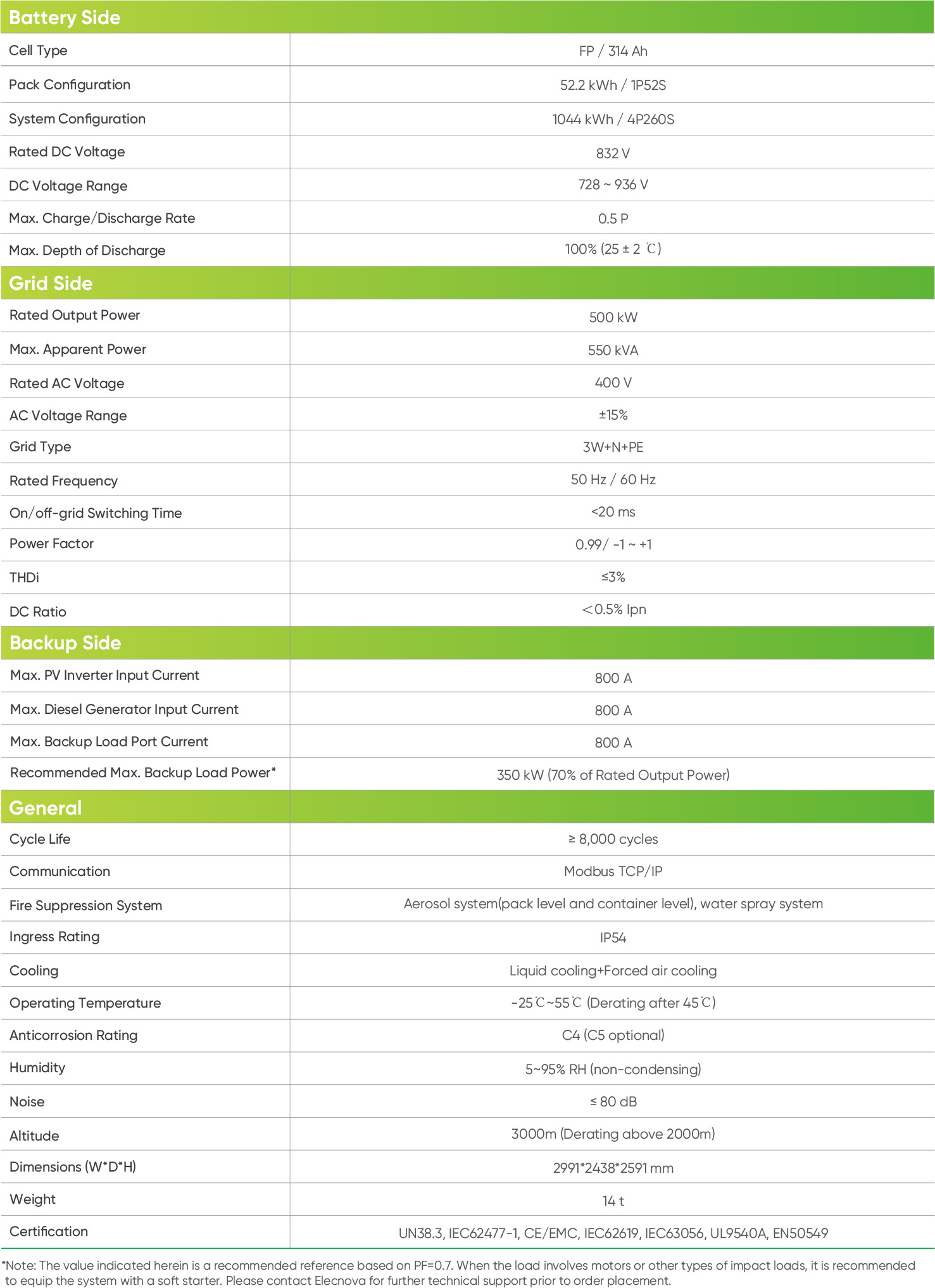

DETAILED SPECIFICATION

Battery Side
Cell Type	FP / 314 Ah
Pack Configuration	52.2 kWh / 1P52S
System Configuration	1044 kWh / 4P260S
Rated DC Voltage	832 V
DC Voltage Range	728 ~ 936 V
Max. Charge/Discharge Rate	0.5 P
Max. Depth of Discharge	100% (25 ± 2 ℃)
Grid Side
Rated Output Power	500 kW
Max. Apparent Power	550 kVA
Rated AC Voltage	400 V
AC Voltage Range	±15%
Grid Type	3W+N+PE
Rated Frequency	50 Hz / 60 Hz
On/off-grid Switching Time	<20 ms
Power Factor	0.99/ -1 ~ +1
THDi	≤3%
DC Ratio	＜0.5% Ipn
Backup Side
Max. PV Inverter Input Current	800 A
Max. Diesel Generator Input Current	800 A
Max. Backup Load Port Current	800 A
Recommended Max. Backup Load Power*	350 kW (70% of Rated Output Power)
General
Cycle Life	≥ 8,000 cycles
Communication	Modbus TCP/IP
Fire Suppression System	Aerosol system(pack level and container level), water spray system
Ingress Rating	IP54
Cooling	Liquid cooling+Forced air cooling
Operating Temperature	-25℃~55℃ (Derating after 45℃)
Anticorrosion Rating	C4 (C5 optional)
Humidity	5~95% RH (non-condensing)
Noise	≤ 80 dB
Altitude	3000m (Derating above 2000m)
Dimensions (WDH)	299124382591 mm
Weight	14 t
Certification	UN38.3, IEC62477-1, CE/EMC, IEC62619, IEC63056, EN50549
