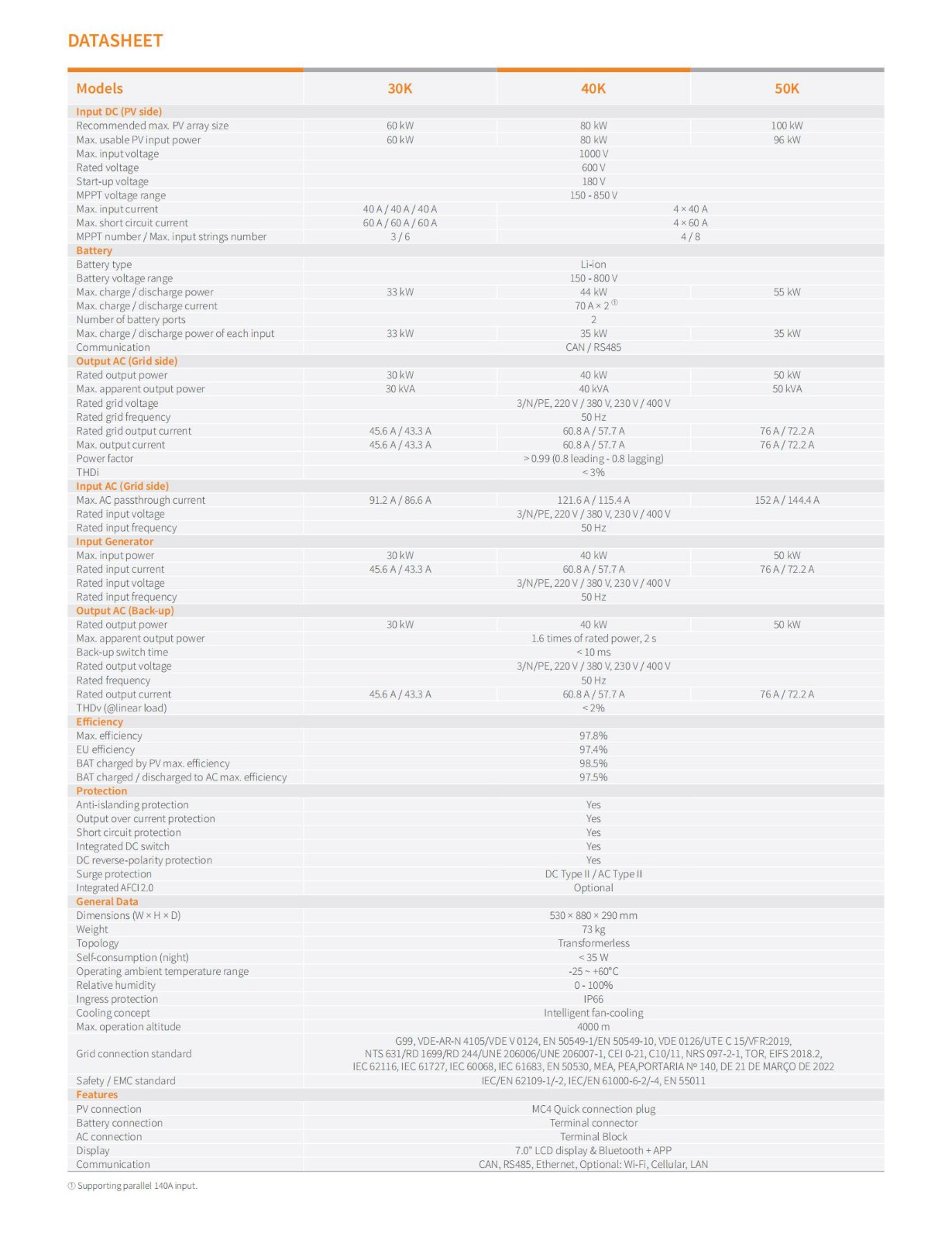

| Models | SE-30K-3PH | SE-40K-3PH | SE-50K-3PH |
| Input DC (PV side) |
| Recommended max. PV array size | 60 kW | 80 kW | 100 kW |
| Max. usable PV input power | 60 kW | 80 kW | 96 kW |
| Max. input voltage | 1000 V |
| Rated voltage | 600 V |
| Start-up voltage | 180 V |
| MPPT voltage range | 150 - 850 V |
| Max. input current | 40 A / 40 A / 40 A | 4 × 40 A |
| Max. short circuit current | 60 A / 60 A / 60 A | 4 × 60 A |
| MPPT number / Max. input strings number | 3/2+2+2 | 4/2+2+2+2 |
| Battery |
| Battery type | Li-ion |
| Battery voltage range | 150 - 800 V |
| Max. charge / discharge power | 33 kW | 44 kW | 55 kW |
| Max. charge / discharge current | 70 A × 2 |
| Number of battery ports | 2 |
| Max. charge / discharge power of each input | 33 kW | 35 kW | 35 kW |
| Communication | CAN / RS485 |
| Output AC (Grid side) |
| Rated output power | 30 kW | 40 kW | 50 kW |
| Max. apparent output power | 30 kVA | 40 kVA | 50 kVA |
| Rated grid voltage | 3/N/PE, 220 V / 380 V, 230 V / 400 V |
| Rated grid frequency | 50 Hz |
| Rated grid output current | 45.6 A / 43.3 A | 60.8 A / 57.7 A | 76 A / 72.2 A |
| Max. output current | 45.6 A / 43.3 A | 60.8 A / 57.7 A | 76 A / 72.2 A |
| Power factor | > 0.99 (0.8 leading - 0.8 lagging) |
| THDi | < 3% |
| Input AC (Grid side) |
| Max. AC passthrough current | 91.2 A / 86.6 A | 121.6 A / 115.4 A | 152 A / 144.4 A |
| Rated input voltage | 3/N/PE, 220 V / 380 V, 230 V / 400 V |
| Rated input frequency | 50 Hz |
| Input Generator |
| Max. input power | 30 kW | 40 kW | 50 kW |
| Rated input current | 45.6 A / 43.3 A | 60.8 A / 57.7 A | 76 A / 72.2 A |
| Rated input voltage | 3/N/PE, 220 V / 380 V, 230 V / 400 V |
| Rated input frequency | 50 Hz |
| Output AC (Back-up) |
| Rated output power | 30 kW | 40 kW | 50 kW |
| Max. apparent output power | 1.6 times of rated power, 2 s |
| Back-up switch time | < 10 ms |
| Rated output voltage | 3/N/PE, 220 V / 380 V, 230 V / 400 V |
| Rated frequency | 50 Hz |
| Rated output current | 45.6 A / 43.3 A | 60.8 A / 57.7 A | 76 A / 72.2 A |
| THDv (@linear load) | < 2% |
| Efficiency |
| Max. efficiency | 97.80% |
| EU efficiency | 97.40% |
| BAT charged by PV max. efficiency | 98.50% |
| BAT charged / discharged to AC max. efficiency | 97.50% |
| Protection |
| Anti-islanding protection | Yes |
| Output over current protection | Yes |
| Short circuit protection | Yes |
| Integrated DC switch | Yes |
| DC reverse-polarity protection | Yes |
| Surge protection | DC Type II / AC Type II |
| Integrated AFCI 2.0 | Optional |
| General Data |
| Dimensions (W × H × D) | 530 × 880 × 290 mm |
| Weight | 73 kg |
| Topology | Transformerless |
| Self-consumption (night) | < 35 W |
| Operating ambient temperature range | -25 ~ +60°C |
| Relative humidity | 0 - 100% |
| Ingress protection | IP66 |
| Cooling concept | Intelligent fan-cooling |
| Max. operation altitude | 4000 m |
| Grid connection standard | G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1/EN 50549-10, VDE 0126/UTE C 15/VFR:2019,
NTS 631/RD 1699/RD 244/UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA,PORTARIA Nº 140, DE 21 DE MARÇO DE 2022 |
|
| Safety / EMC standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011 |
| Features |
| PV connection | MC4 Quick connection plug |
| Battery connection | Terminal connector |
| AC connection | Terminal Block |
| Display | 7.0" LCD display & Bluetooth + APP |
| Communication | CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN |
