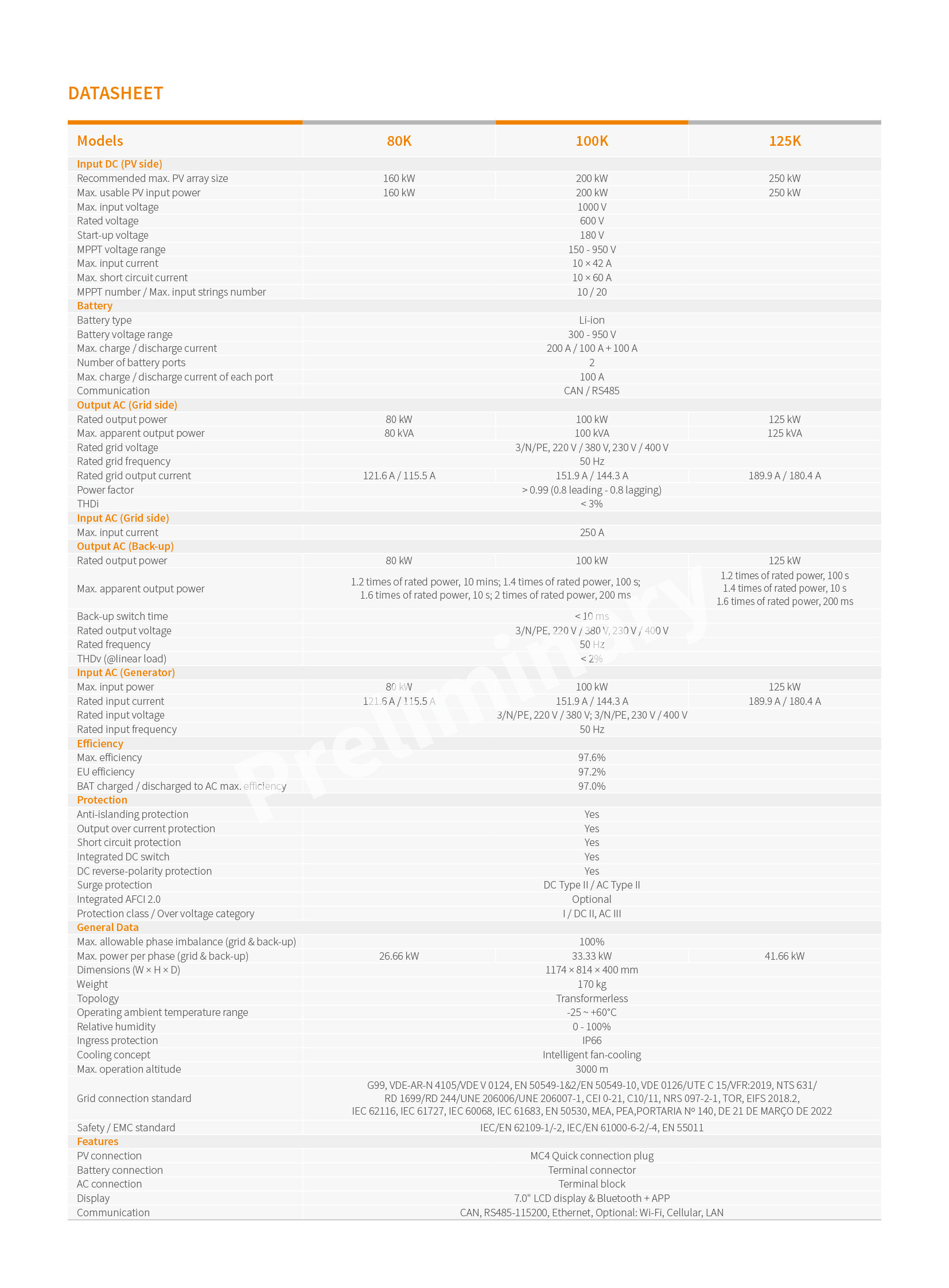

| Models | SE-80K-3PH | SE-100K-3PH | SE-125K-3PH |
| Input DC (PV side) |
| Recommended max. PV array size | 160 kW | 200 kW | 250 kW |
| Max. usable PV input power | 160 kW | 200 kW | 250 kW |
| Max. input voltage | 1000 V |
| Rated voltage | 600 V |
| Start-up voltage | 180 V |
| MPPT voltage range | 150 - 950 V |
| Max. input current | 10 × 42 A |
| Max. short circuit current | 10 × 60 A |
| MPPT number / Max. input strings number | 10/2+2+2+2+2+2+2+2+2+2 |
| Battery |
| Battery type | Li-ion |
| Battery voltage range | 300 - 950 V |
| Max. charge / discharge current | 100 A × 2 / 100 A × 2 |
| Number of battery ports | 2 |
| Max. charge / discharge current of each port | 100 A |
| Communication | CAN / RS485 |
| Output AC (Back-up) |
| Rated output power | 80 kW | 100 kW | 125 kW |
| Max. apparent output power | 80-100K: 1.6 times of rated power, 10 s; 2 times of rated power, 200 ms; 125K: 1.4 times of rated power, 10 s; 1.6 times of rated power, 200 ms |
| Back-up switch time | < 10 ms |
| Rated output voltage | 3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V |
| Rated frequency | 50 Hz / 60 Hz |
| THDv (@linear load) | < 3% |
| Input AC (Grid side) |
| Max. input current | 250 A |
| Input AC (Generator) |
| Max. input power | 80 kW | 100 kW | 125 kW |
| Rated input current | 121.6 A / 115.5 A | 151.9 A / 144.3 A | 189.9 A / 180.4 A |
| Rated input voltage | 3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V |
| Rated input frequency | 50 Hz / 60 Hz |
| Output AC (Grid side) |
| Rated output power | 80 kW | 100 kW | 125 kW |
| Max. apparent output power | 80 kVA | 100 kVA | 125 kVA |
| Rated grid voltage | 3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V |
| Rated grid frequency | 50 Hz / 60 Hz |
| Rated grid output current | 121.6 A / 115.5 A | 151.9 A / 144.3 A | 189.9 A / 180.4 A |
| Power factor | > 0.99 (0.8 leading - 0.8 lagging) |
| THDi | < 3% |
| Efficiency |
| Max. efficiency | 97.50% |
| EU efficiency | 96.90% | 97.10% | 97.20% |
| BAT charged / discharged to AC max. efficiency | 97.00% |
| Protection |
| Anti-islanding protection | Yes |
| Output over current protection | Yes |
| Insulation resistance monitoring | Yes |
| Short circuit protection | Yes |
| Integrated DC switch | Yes |
| DC reverse-polarity protection | Yes |
| Protection class / Over voltage category | I / DC II, AC III |
| Surge protection | DC Type II / AC Type II |
| Integrated AFCI 2.0 | Optional |
| General Data |
| Max. power per phase (grid & back-up) | 26.66 kW | 33.33 kW | 41.66 kW |
| Dimensions (W × H × D) | 1185 × 862 × 435mm |
| Weight | 170 kg |
| Topology | Transformerless |
| Operating ambient temperature range | -25 ~ +60°C |
| Relative humidity | 0 - 100% |
| Ingress protection | IP66 |
| Cooling concept | Intelligent redundant fan-cooling |
| Max. operation altitude | 3000 m |
| Grid connection standard | G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1&2/EN 50549-10, VDE 0126 / UTE C 15/VFR:2019, NTS 631/RD 1699/ RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727,
IEC 60068, IEC 61683, EN 50530, MEA, PEA,PORTARIA Nº 140, DE 21 DE MARÇO DE 2022 |
| Safety / EMC standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011 |
| Features |
| PV connection | MC4 Quick connection plug |
| Battery connection | Terminal connector |
| AC connection | Terminal block |
| Display | 7.0" LCD display & Bluetooth + APP |
| Communication interface | Standard: WIFI+LAN+Bluetooth, CAN-BMS × 2, CAN-Parallel × 2, LAN, RS485-Meter, RS485, DRM, DI × 5, DO × 4; Optional: 4G |
