HOME > PRODUCTS > Energy Storage Battery > High Voltage Lithium Battery > BESS Container 5MWh Liquid Cooling 1331.2Vdc

SE-5015L-C20 LIQUID COOLING BESS CONTAINER

The 20-ft liquid-cooled ESS container integrates PACK, EMS, BMS, HVAC, and fire suppression system (FSS) into a single container. Designed for demanding applications, the 20-ft liquid-cooled ESS container is suitable for power generation, grid, and commercial & industrial (C&l) ESS scenarios that require high power and flexible capacity.

INQUIRY

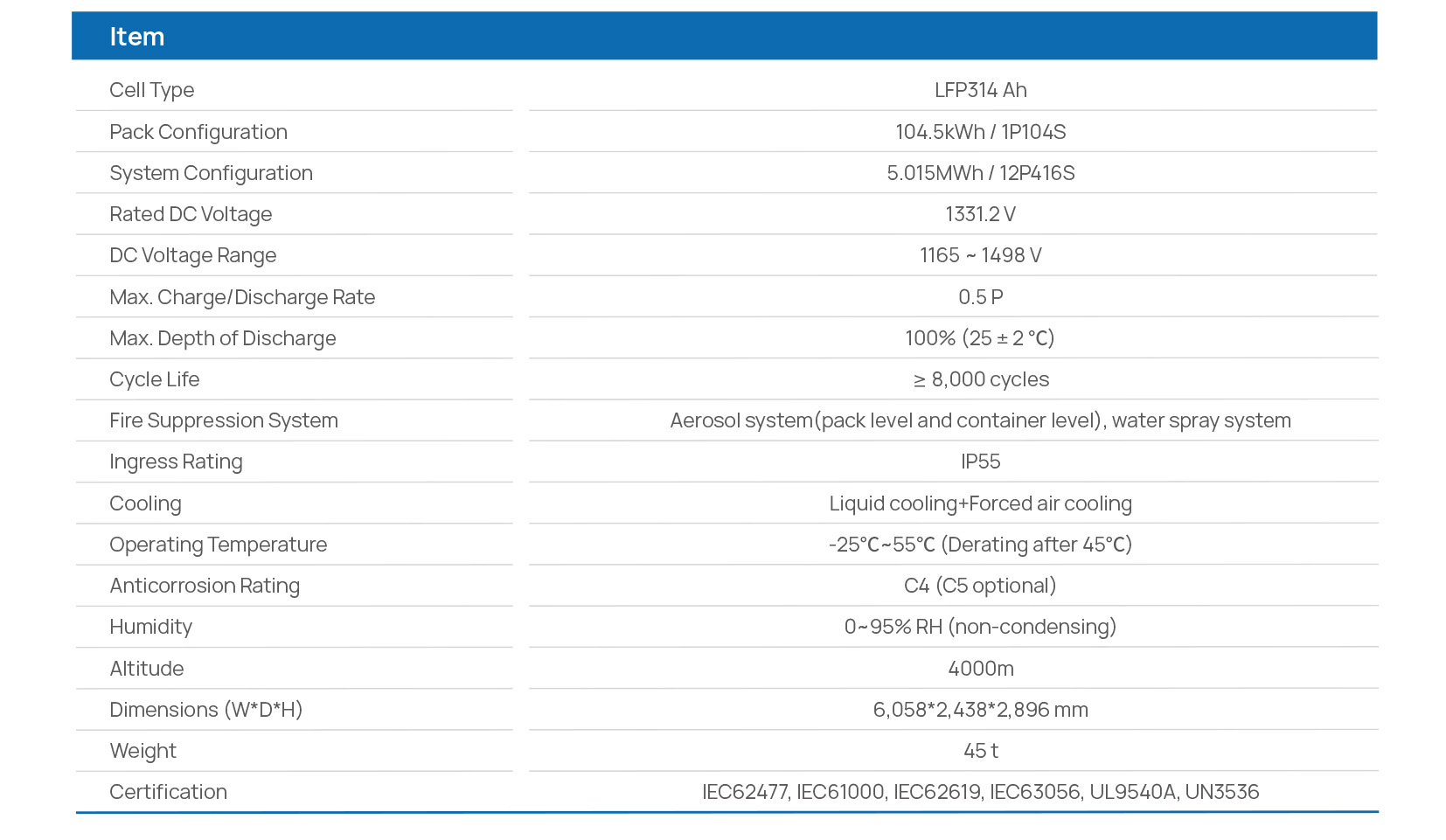

DETAILED SPECIFICATION

Cell Type	LFP314 Ah
Pack Configuration	104.5kWh / 1P104S
System Configuration	5.015MWh / 12P416S
Rated DC Voltage	1331.2 V
DC Voltage Range	1165 ~ 1498 V
Max. Charge/Discharge Rate	0.5 P
Max. Depth of Discharge	100% （25 ± 2 ℃）
Cycle Life	≥8,000 cycles
Fire Suppression System	Aerosol system(pack level and container level), water spray system
Ingress Rating	IP55
Cooling	Liquid cooling+Forced air cooling
Operating Temperature	-25℃~55℃ (Derating after 45℃)
Anticorrosion Rating	C4 (C5 optional)
Humidity	0~95% RH (non-condensing)
Altitude	4000m
Dimensions (WDH)	6,0582,4382,896 mm
Weight	45 t
Certification	IEC62477, IEC61000, IEC62619, IEC63056, UN3536

COMPATIBLE INVERTERS
