SE SERIES OFF GRID SINGLE PHASE LOW VOLTAGE INVERTER 4/5/6K

INQUIRY

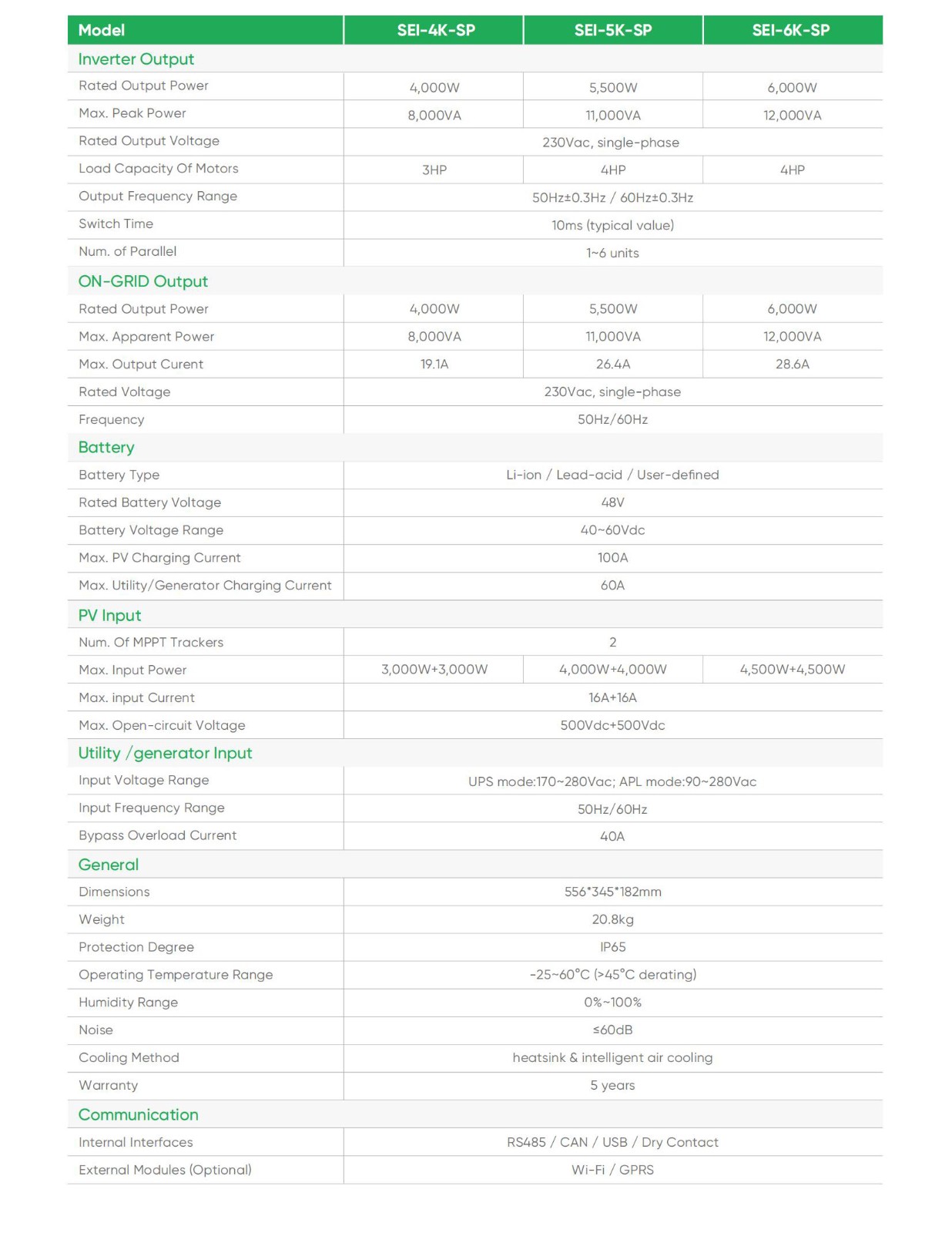

DETAILED SPECIFICATION
ModelSE-4K-SPSE-5K-SPSE-6K-SP
Inverter Output
Rated Output Power4,000W5,500W6,000W
Max. Peak Power8,000VA11,000VA12,000VA
Rated Output Voltage230Vac,  single-phase
Load Capacity Of Motors3HP4HP4HP
Output Frequency Range50Hz±0.3Hz / 60Hz±0.3Hz
Switch Time10ms (typical value)
Num. of Parallel1~6 units
ON-GRID Output
Rated Output Power4,000W5,500W6,000W
Max. Apparent Power8,000VA11,000VA12,000VA
Max. Output Curent19.1A26.4A28.6A
Rated Voltage230Vac,  single-phase
Frequency50Hz/60Hz
Battery
Battery TypeLi-ion / Lead-acid / User-defined
Rated Battery Voltage48V
Battery Voltage Range40~60Vdc
Max. PV Charging Current100A
Max. Utility/Generator Charging Current60A
PV Input
Num. Of MPPT Trackers2
Max. Input Power3,000W+3,000W4,000W+4,000W4,500W+4,500W
Max. input Current16A+16A
Max. Open-circuit Voltage500Vdc+500Vdc
Utility /generator Input
Input Voltage RangeUPS mode:170~280Vac; APL mode:90~280Vac
Input Frequency Range50Hz/60Hz
Bypass Overload Current40A
General
Dimensions556*345*182mm
Weight20.8kg
Protection DegreeIP65
Operating Temperature Range-25~60°C (>45°C derating)
Humidity Range0%~100%
Noise≤60dB
Cooling Methodheatsink & intelligent air cooling
Warranty5 years
Communication
Internal InterfacesRS485 / CAN / USB / Dry Contact
External Modules (Optional)Wi-Fi / GPRS
