SE SERIES THREE PHASE HIGH VOLTAGE PCS CONVERTER 30-500K 400VAC

INQUIRY

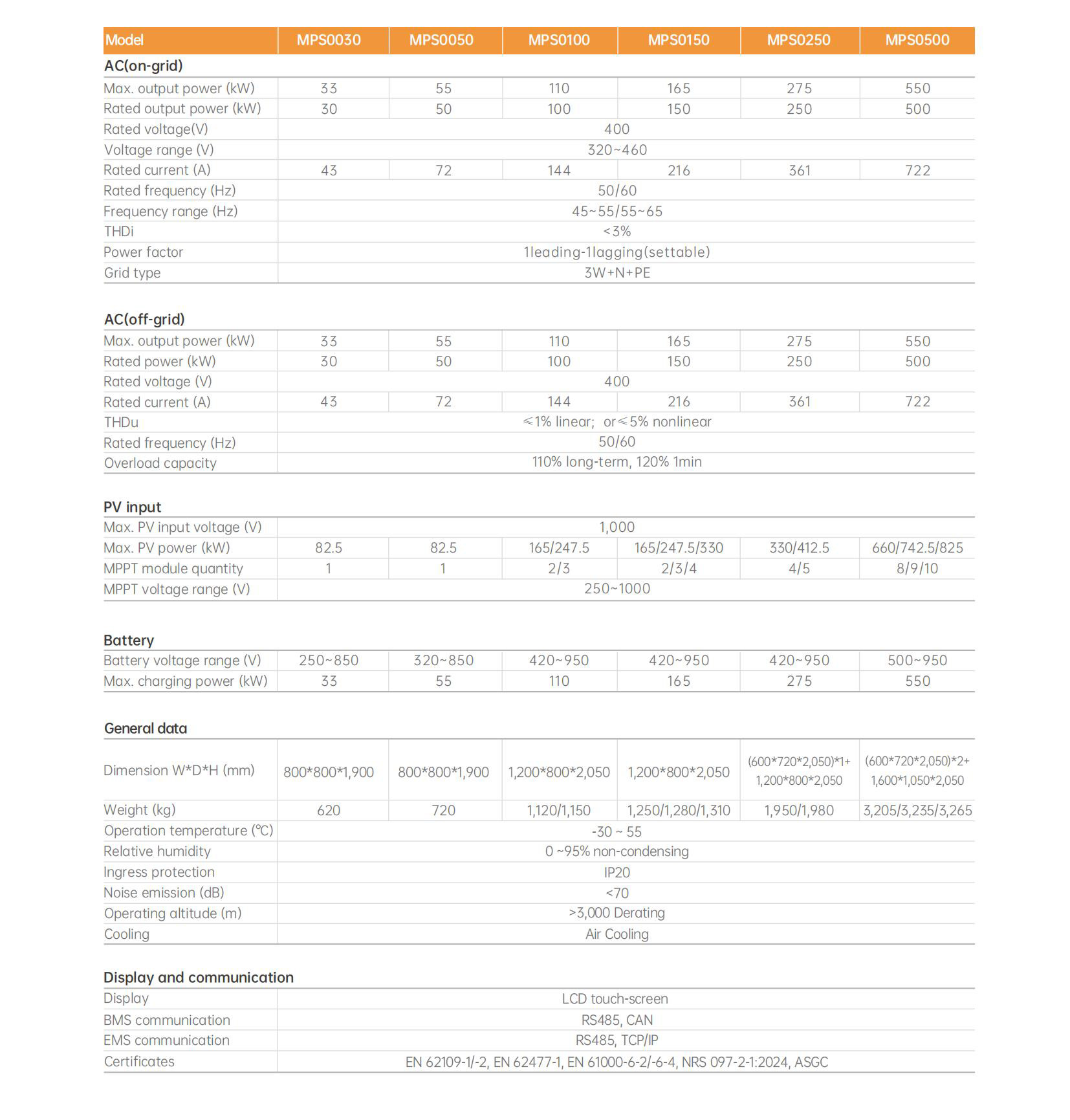

DETAILED SPECIFICATION

Model	SE-30K-PCS	SE-50K-PCS	SE-100K-PCS	SE-150K-PCS	SE-250K-PCS	SE-500K-PCS
AC(on-grid)
Max. output power (kW)	33	55	110	165	275	550
Rated output power (kW)	30	50	100	150	250	500
Rated voltage(V)	400
Voltage range (V)	320~460
Rated current (A)	43	72	144	216	361	722
Rated frequency (Hz)	50/60
Frequency range (Hz)	45~55/55~65
THDi	<3%
Power factor	1leading-1lagging(settable)
Grid type	3W+N+PE
AC(off-grid)
Max. output power (kW)	33	55	110	165	275	550
Rated power (kW)	30	50	100	150	250	500
Rated voltage (V)	400
Rated current (A)	43	72	144	216	361	722
THDu	≤1% linear; or≤5% nonlinear
Rated frequency (Hz)	50/60
Overload capacity	110% long-term, 120% 1min
PV input
Max. PV input voltage (V)	1,000
Max. PV power (kW)	82.5	82.5	165/247.5	165/247.5/330	330/412.5	660/742.5/825
MPPT module quantity	1	1	2(3)	3(4)	4(5)	8(9,10)
MPPT voltage range (V)	250~1000
Battery
Battery voltage range (V)	250~850	320~850	420~950	420~950	420~950	500~950
Max. charging power (kW)	33	55	110	165	275	550
General data
Dimension WDH (mm)	8008001,900	8008001,900	1,2008002,050	1,2008002,050	1,2008002,050	1,2008002,050
Dimension WDH (mm)	8008001,900	8008001,900	1,2008002,050	1,2008002,050	1,2008002,050	1,2008002,050
Weight (kg)	620	720	1,120	1,250	1,950	3,205
Operation temperature (℃)	-30 ~ 55
Relative humidity	0 ~95% non-condensing
Ingress protection	IP20
Noise emission (dB)	<70
Operating altitude (m)	>3,000 Derating
Cooling	Air Cooling
Display and communication
Display	LCD touch-screen
BMS communication	RS485, CAN
EMS communication	RS485, TCP/IP
Certificates	EN 62109-1/-2, EN 62477-1, EN 61000-6-2/-6-4, NRS 097-2-1:2024, ASGC
