SE2.5MW-5MWH BESS CONTAINER 1331.2V

INQUIRY

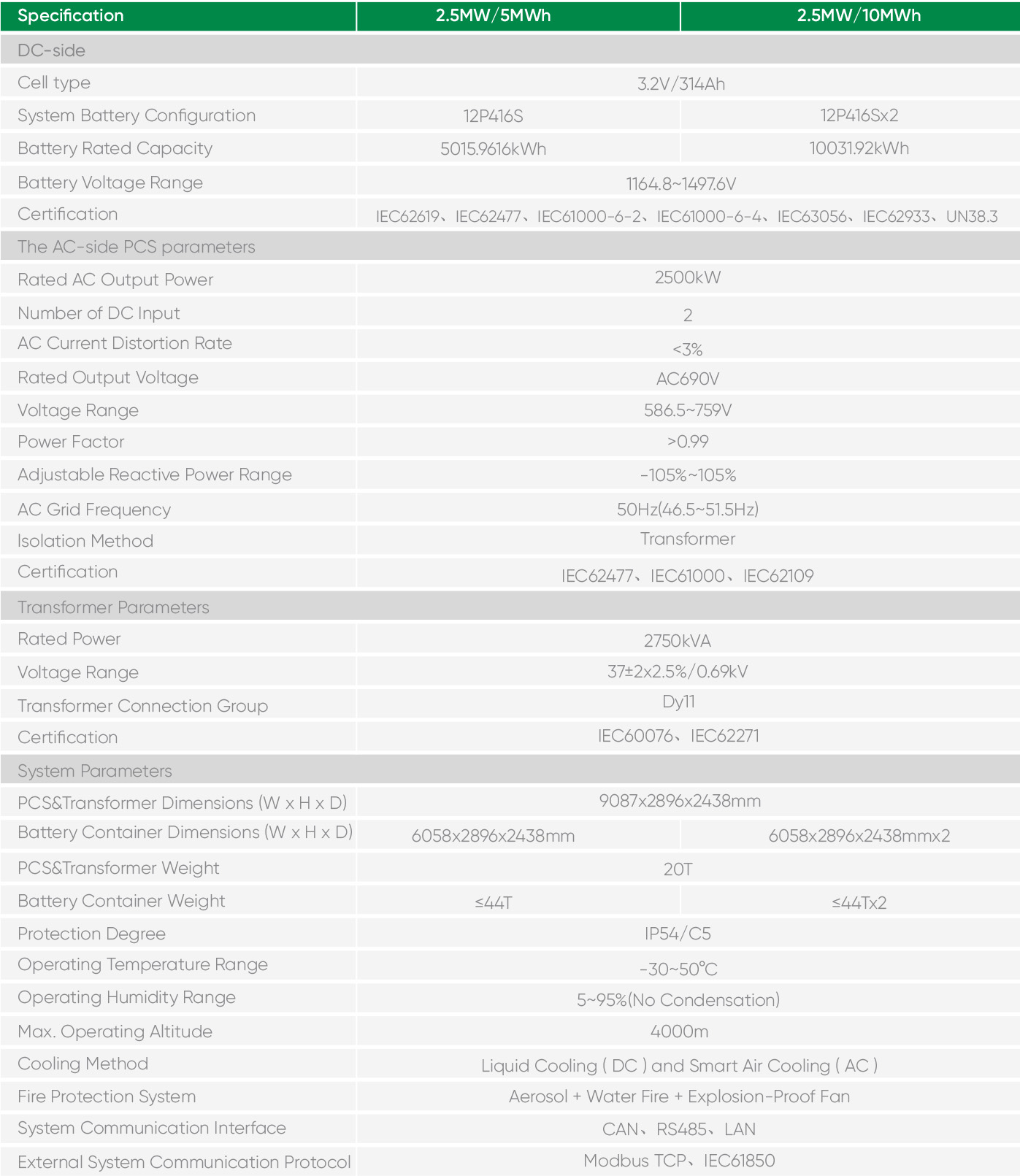

DETAILED SPECIFICATION


DC-side
Cell type3.2V/314Ah
System Battery Configuration12P416S for one unit
Battery Rated Capacity5015.9616kWh for one unit
Battery Voltage Range1164.8~1497.6V
CertificationIEC62619、IEC62477、IEC61000-6-2、IEC61000-6-4、IEC63056、IEC62933、UN38.3
The AC-side PCS parameters
Rated AC Output Power2500kW
Number of DC Input2
AC Current Distortion Rate<3%
Rated Output VoltageAC690V
Voltage Range586.5~759V
Power Factor>0.99
Adjustable Reactive Power Range-105%~105%
AC Grid Frequency50Hz(46.5~51.5Hz)
lsolation MethodTransformer
CertificationIEC62477、IEC61000、IEC62109
Transformer Parameters
Rated Power2750kVA
Voltage Range37±2x2.5%/0.69kV
Transformer Connection GroupDy11
CertificationIEC60076、IEC62271
System Parameters
PCS&Transformer Dimensions (W x H x D)9087x2896x2438mm
Battery Container Dimensions (W x H x D)6058x2896x2438mm for one unit
PCS&Transformer Weight20T
Battery Container Weight≤44T for one unit
Protection DegreeIP54/C5
Operating Temperature Range-30~50°C
Operating Humidity Range5~95%(No Condensation)
Max. Operating Altitude4000m
Cooling MethodLiquid Cooling ( DC ) and Smart Air Cooling ( AC )
Fire Protection SystemAerosol + Water Fire + Explosion-Proof Fan
System Communication InterfaceCAN、RS485、LAN
External System Communication ProtocolModbus TCP、IEC61850
