SE1000KW-2170KWH BESS CONTAINER

INQUIRY

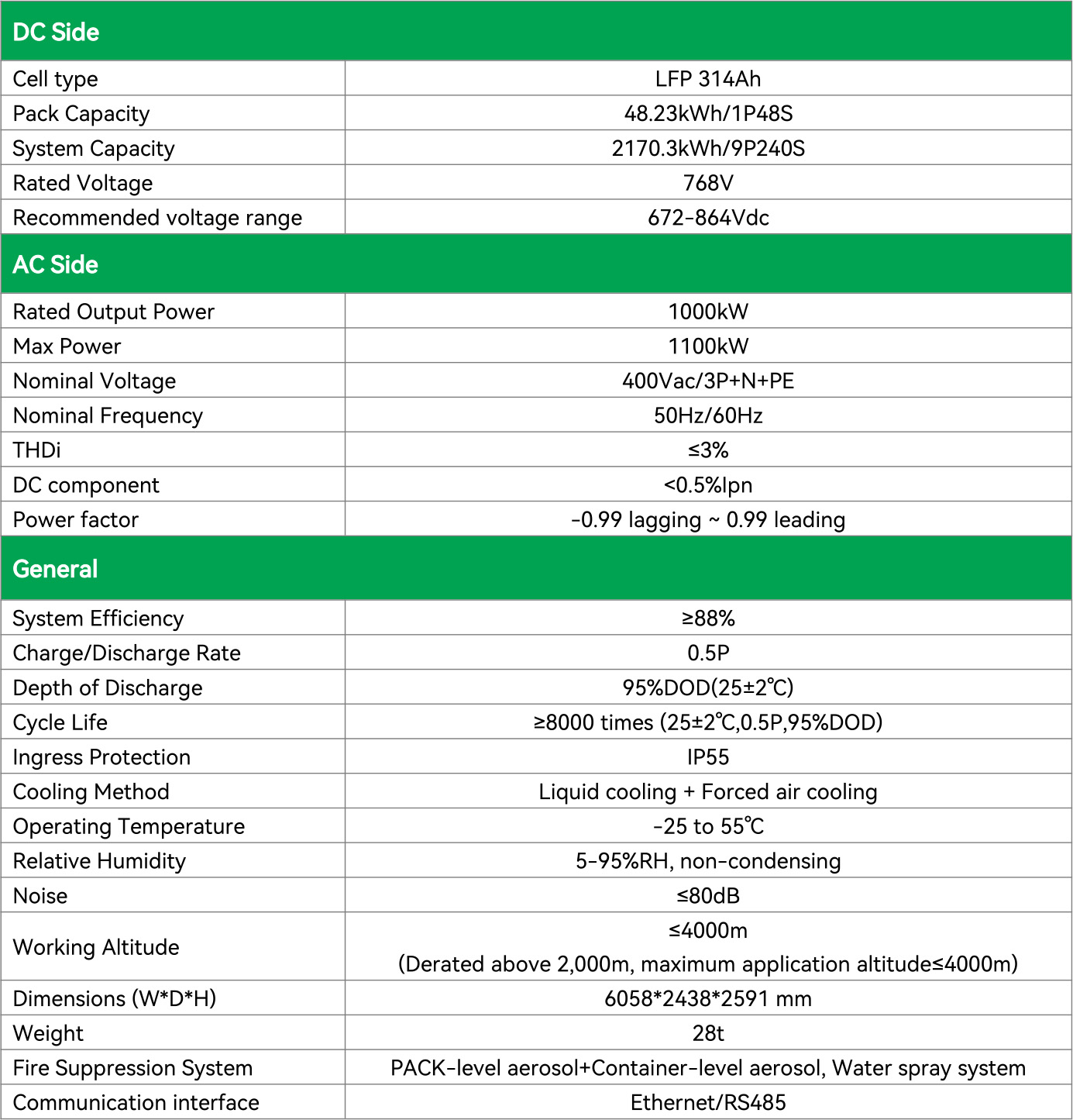

DETAILED SPECIFICATION

DC Side
Cell Type		LFP314Ah
PACK		48.23kWh/1P48S
Battery System		2170.3kWh/9P240S
Voltage Range		672-864Vdc
AC Side
Rated Power		1000kW
Max. Power		1100kW
THDi		≤3%
DC Ratio		<0.5%lpn
Nominal Voltage		400Vac/3P+N+PE
Power Factor		-1 lagging ~+ 1 leading
Nominal Frequency		50Hz/60Hz
General
System Emciency		≥88%
Charge/Discharge Rate		0.5P
DOD		95% (25±2℃)
Cycle Life		8000cycles@±25℃,95%DOD 0.5P
Communication		Ethernet /RS485
Ingress Rating		IP55
Cooling System		Liquid Cooled + Forced Air Cooled
Operating Temperature		25℃~55℃ *
Humidity		~95%RH, non-condensing
Noise		≤80dB
Altitude		≤2,000m (derating above 2,000m)
Fire Suppression System		Aerosol system (pack level and container level) , water spray system
Dimensions (WDH)		605824382591 (mm)
Weight		25t
Compliance		UN38.3, IEC62477-1, CE/EMC, IEC62619, IEC63056, IEC62933, EN50549
