SE SERIES OFF GRID SINGLE PHASE LOW VOLTAGE INVERTER 8/10/12K

INQUIRY

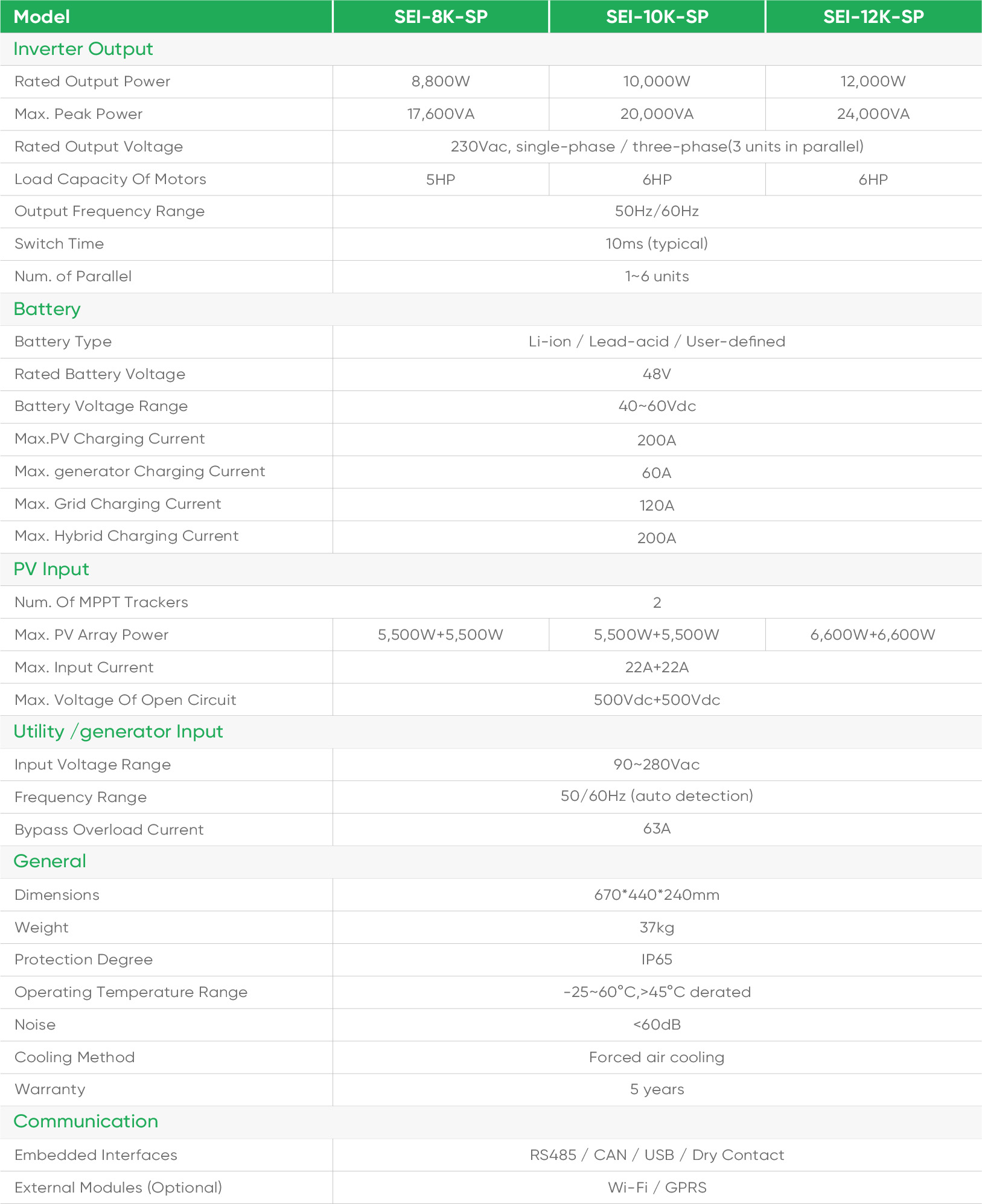

DETAILED SPECIFICATION
ModelSE-8K-SPSE-10K-SPSE-12K-SP
Inverter Output
Rated Output Power8,800W10,000W12,000W
Max. Peak Power17,600VA20,000VA24,000VA
Rated Output Voltage230Vac, single-phase / three-phase(3 units in parallel)
Load Capacity Of Motors5HP6HP6HP
Output Frequency Range50Hz/60Hz
Switch Time10ms (typical)
Num. of Parallel1~6 units
Battery
Battery TypeLi-ion / Lead-acid / User-defined
Rated Battery Voltage48V
Battery Voltage Range40~60Vdc
Max.PV Charging Current200A
Max. generator Charging Current60A
Max. Grid Charging Current120A
Max. Hybrid Charging Current200A
PV Input
Num. Of MPPT Trackers2
Max. PV Array Power5,500W+5,500W5,500W+5,500W6,600W+6,600W
Max. Input Current22A+22A
Max. Voltage Of Open Circuit500Vdc+500Vdc
Utility /generator Input
Input Voltage Range90~280Vac
Frequency Range50/60Hz (auto detection)
Bypass Overload Current63A
General
Dimensions670*440*240mm
Weight37kg
Protection DegreeIP65
Operating Temperature Range-25~60°C,>45°C derated
Noise<60dB
Cooling MethodForced air cooling
Warranty5 years
Communication
Embedded InterfacesRS485 / CAN / USB / Dry Contact
External Modules (Optional)Wi-Fi / GPRS
