SE SERIES HYBRID GRID SPLIT PHASE LOW VOLTAGE INVERTER 8/10/12K 120/240VAC

INQUIRY

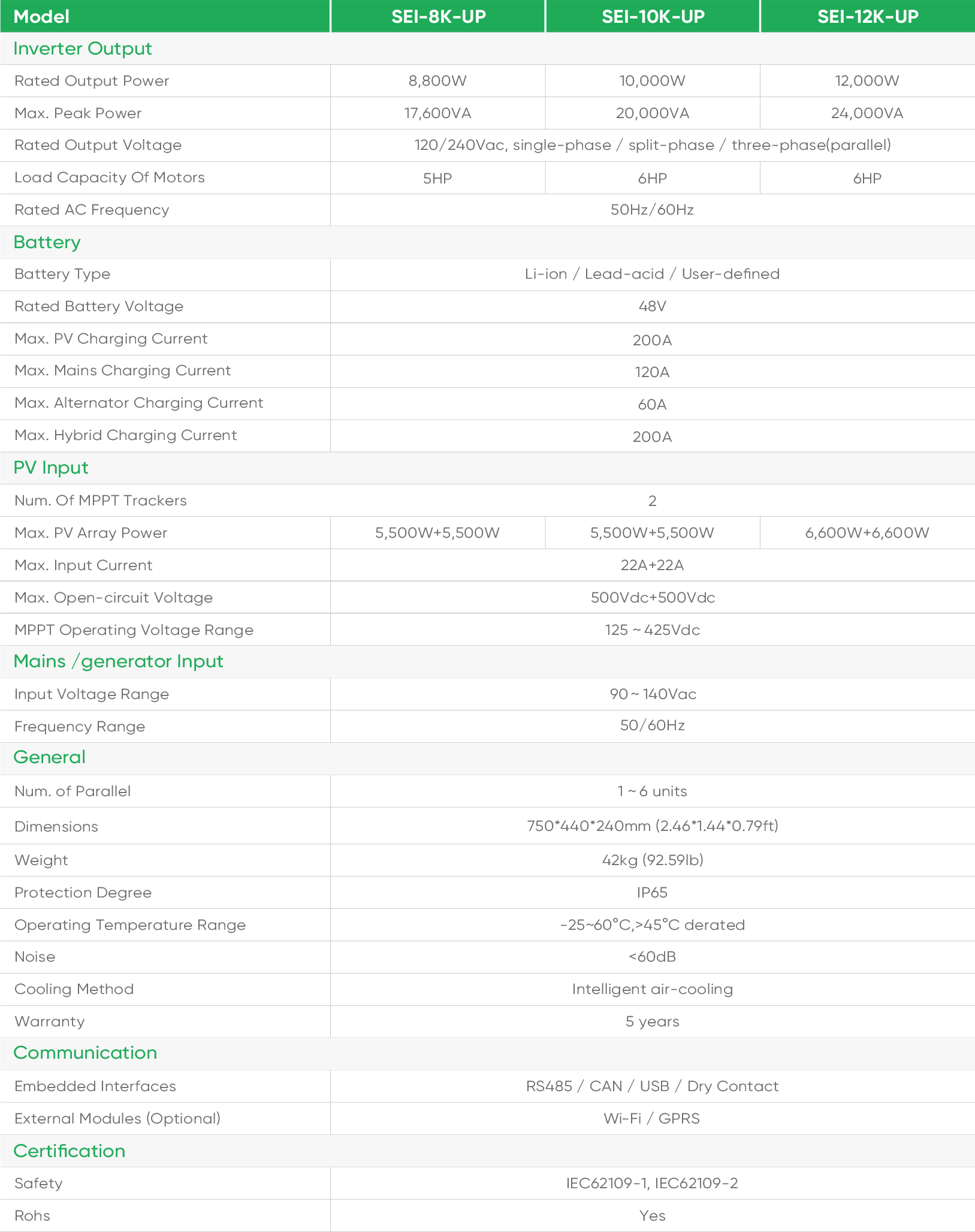

DETAILED SPECIFICATION
ModelSE-8K-UPSE-10K-UPSE-12K-UP
Inverter Output
Rated Output Power8,800W10,000W12,000W
Max. Peak Power17,600VA20,000VA24,000VA
Rated Output Voltage120/240Vac, single-phase / split-phase / three-phase(parallel)
Load Capacity Of Motors5HP6HP6HP
Rated AC Frequency50Hz/60Hz
Battery
Battery TypeLi-ion / Lead-acid / User-defined
Rated Battery Voltage48V
Max. PV Charging Current200A
Max. Mains Charging Current120A
Max. Alternator Charging Current60A
Max. Hybrid Charging Current200A
PV Input
Num. Of MPPT Trackers2
Max. PV Array Power5,500W+5,500W5,500W+5,500W6,600W+6,600W
Max. Input Current22A+22A
Max. Open-circuit Voltage500Vdc+500Vdc
MPPT Operating Voltage Range125 ~ 425Vdc
Mains /generator Input
Input Voltage Range90 ~ 140Vac
Frequency Range50/60Hz
General
Num. of Parallel1 ~ 6 units
Dimensions750*440*240mm (2.46*1.44*0.79ft)
Weight42kg (92.59lb)
Protection DegreeIP65
Operating Temperature Range-25~60°C,>45°C derated
Noise<60dB
Cooling MethodIntelligent air-cooling
Warranty5 years
Communication
Embedded InterfacesRS485 / CAN / USB / Dry Contact
External Modules (Optional)Wi-Fi / GPRS
Certification
SafetyIEC62109-1, IEC62109-2
RohsYes
