SE SERIES HYBRID THREE PHASE LOW VOLTAGE INVERTER 14/16/18K 127/220VAC

INQUIRY

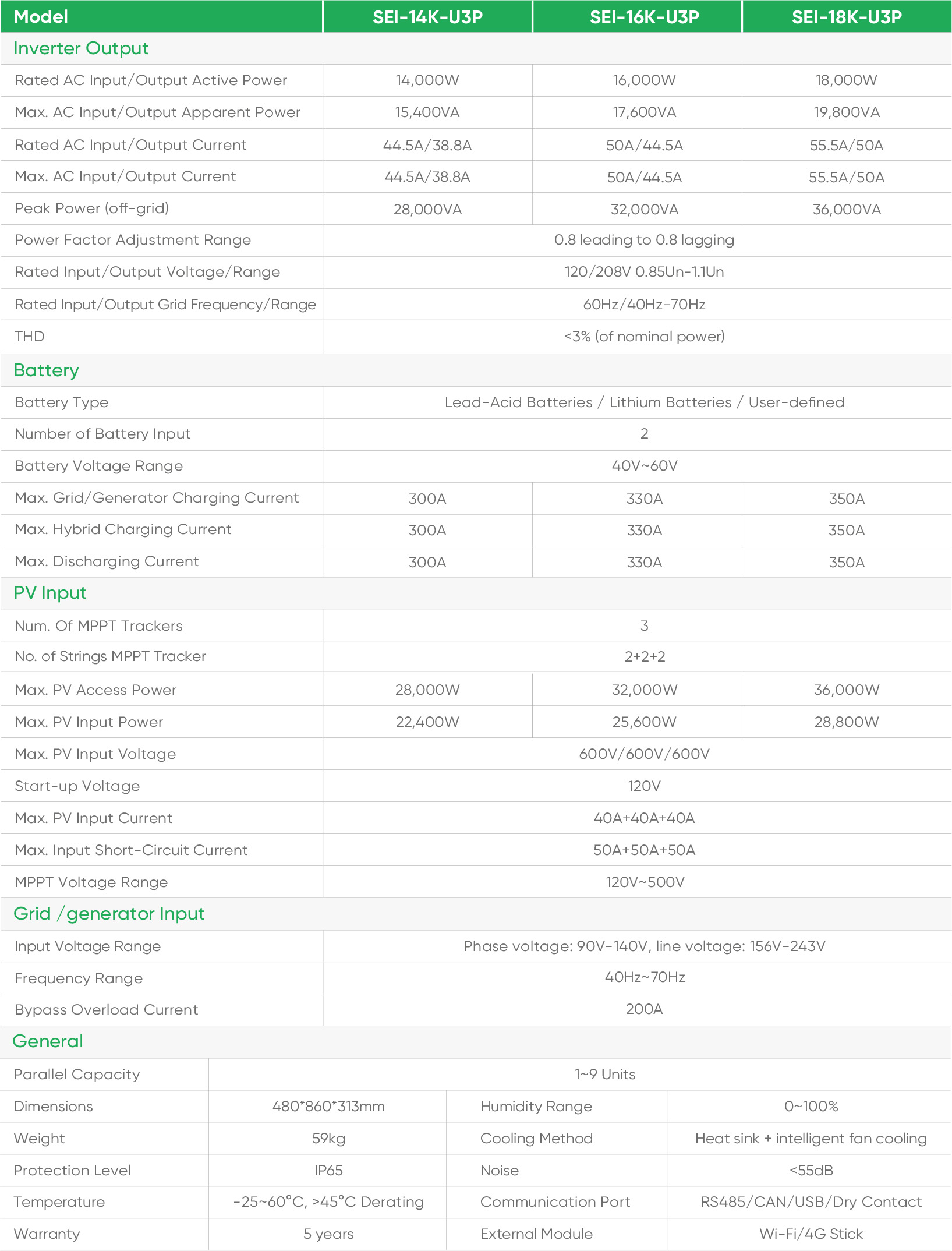

DETAILED SPECIFICATION
ModelSE-14K-U3PSE-16K-U3PSE-18K-U3P
Inverter Output
Rated AC Input/Output Active Power14,000W16,000W18,000W
Max. AC Input/Output Apparent Power15,400VA17,600VA19,800VA
Rated AC Input/Output Current44.5A/38.8A50A/44.5A55.5A/50A
Max. AC Input/Output Current44.5A/38.8A50A/44.5A55.5A/50A
Peak Power (off-grid)28,000VA32,000VA36,000VA
Power Factor Adjustment Range
0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range120/208V 0.85Un~1.1Un
Rated Input/Output Grid Frequency/Range60Hz/40Hz~70Hz
Grid Connection Form3L+N+PE
THD<3% (of nominal power)
Battery Input Data
Battery TypeLead-Acid Batteries / Lithium Batteries / User-defined
Number of Battery Input2
Battery Voltage Range40V~60V
Max. Grid/Generator Charging Current300A330A350A
Max. Hybrid Charging Current300A330A350A
Max. Discharging Current300A330A350A
Charging Strategy for Li-ionBatterySelf-adaption to BMS
PV Input Data
Num. Of MPPT Trackers3
No. of Strings MPPT Tracker2+2+2
Max. PV Access Power28,000W32,000W36,000W
Max. PV Input Power22,400W25,600W28,800W
Max. PV Input Voltage600V/600V/600V
Start-up Voltage120V
Max. PV Input Current40A+40A+40A
Max. Input Short-Circuit Current50A+50A+50A
MPPT Voltage Range120V~500V
Grid/Generator Input
Input Voltage RangePhase voltage: 90V~140V, line voltage: 156V~243V
Frequency Range40Hz~70Hz
Bypass Overload Current200A
Emciency
MPPT Tracking Emciency99.90%Max. Emciency97.50%CEC Emciency97%
General Data
Parallel Capacity1~9 Units
Dimensions480*860*313mmHumidity Range0~100%
Weight59kgCooling MethodHeat sink + intelligent air cooling
Protection LevelIP65Noise<55dB
Temperature-25~60°C, >45°C DeratingCommunication PortRS485/CAN/USB/Dry Contact
Warranty5 yearsExternal ModuleWi-Fi/4G Stick
Protection
PV Lightning ProtectionYesAnti-islanding ProtectionYes
Leakage Current DetectionYesInsulation Resistor DetectionYes
Output Overcurrent / Shorted ProtectionYesPV Input Reverse Polarity ProtectionYes
Overvoltage CategoryAC type III/DC type IISurge protectionAC type II/DC type II
